MICROBEAST PLUS is a 3-axis control system for flybarless RC model helicopters. MEMS sensors of the latest generation measure the aircraft′s rotational movement with unprecedented precision and transmit the data digitally and in real time to the system.

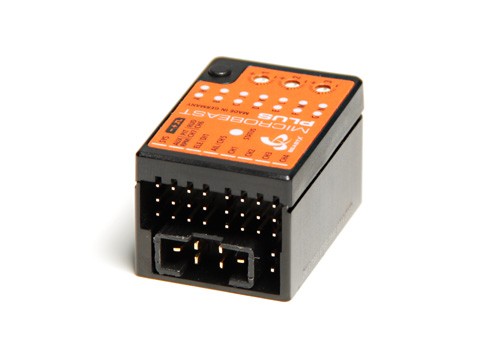

MICROBEAST PLUS HD has a housing in aluminum composite construction and a switchable high power input to meet the requirements of large RC helicopters (550 size and bigger helicopters that use standard size servos) in terms of providing a stable power supply.

The sophisticated setup can quickly be done everywhere and no expensive programming box or computer is needed. So many settings can also be changed simply and easily at the flying field.

Further options are available with the optional USB2SYS interface and the StudioX software package. MICROBEAST PLUS can be kept up to date by using the update functionality and advanced pilot can thus customize the unit specifically to their needs.

The device comes with Firmware ProEdition: Additional to the basic functionality as flybarless and tail gyro system an internal RPM Governor function for helicopters with electric or combustion drive is included as well as the AttidudeControl function which can level the helicopter automatically. This allows to activate different training aids like bail out rescue mode, 3D-Mode or flight trainer mode.

Technical data:

Input voltage: 3,5 V - 8,5 V DC (Operation with 2 cell LiPo possible)

Processor: 32 Bit ARM

Sensor: 6-Axis MEMS (Gyro + Accelerometer)

Dimensions: 36 x 25 x 14 mm

Weight (w/o wiring): ca. 11g

Features:

Requires a radio system with at least 6 output channels (5 control functions + throttle).

Servo outputs:

• 3 swash plate servos

Maximum adjustable servo update rate: 200Hz

Swash plate mixing types: mCCPM, 90°, 120°, 135°, 140° as well es freely configurable mixer with StudioX, i.e. for swash phasing

• 1 rudder servo

Supports mostly all types of servos with 1520µs, 960µs or 760µs

Maximum adjustable servo update rate: 560Hz

• When using a SingleLine receiver additionally:

throttle output, auxiliary output for landing gear, position lights or else

Signal inputs:

• Standard receiver with single servo output channels

• SingleLine receivers: Spektrum DSM2/DSMX remote satellite*, JR RJ01 DMSS remote satellite*, Futaba S.Bus, SRXL (JR XBUS, Spektrum SRXL, SUMD, M-Link, BEASTX SRXL, JETI UDI), SPPM

• Sensor board (i. e. for connecting a rpm sensor for internal electric or nitro RPM governor function).

* only with Spektrum remote satellite adapter

High power input:

• well proven electronic switch system

• allows to connect power wires with large diameter between receiver battery/BEC and flybarless system

Box contents:

• MICROBEAST PLUS HD

• Switch harness

• Power cable

• Receiver connection cables

• 3M adhesive pads

• Adjustment tool

• Quick start manual poster

• Plastic quick reference card

• Sticker set

Optional accessories:

• USB2SYS Interface for communication with StudioX PC Software

• Spektrum remote satellite adapter
