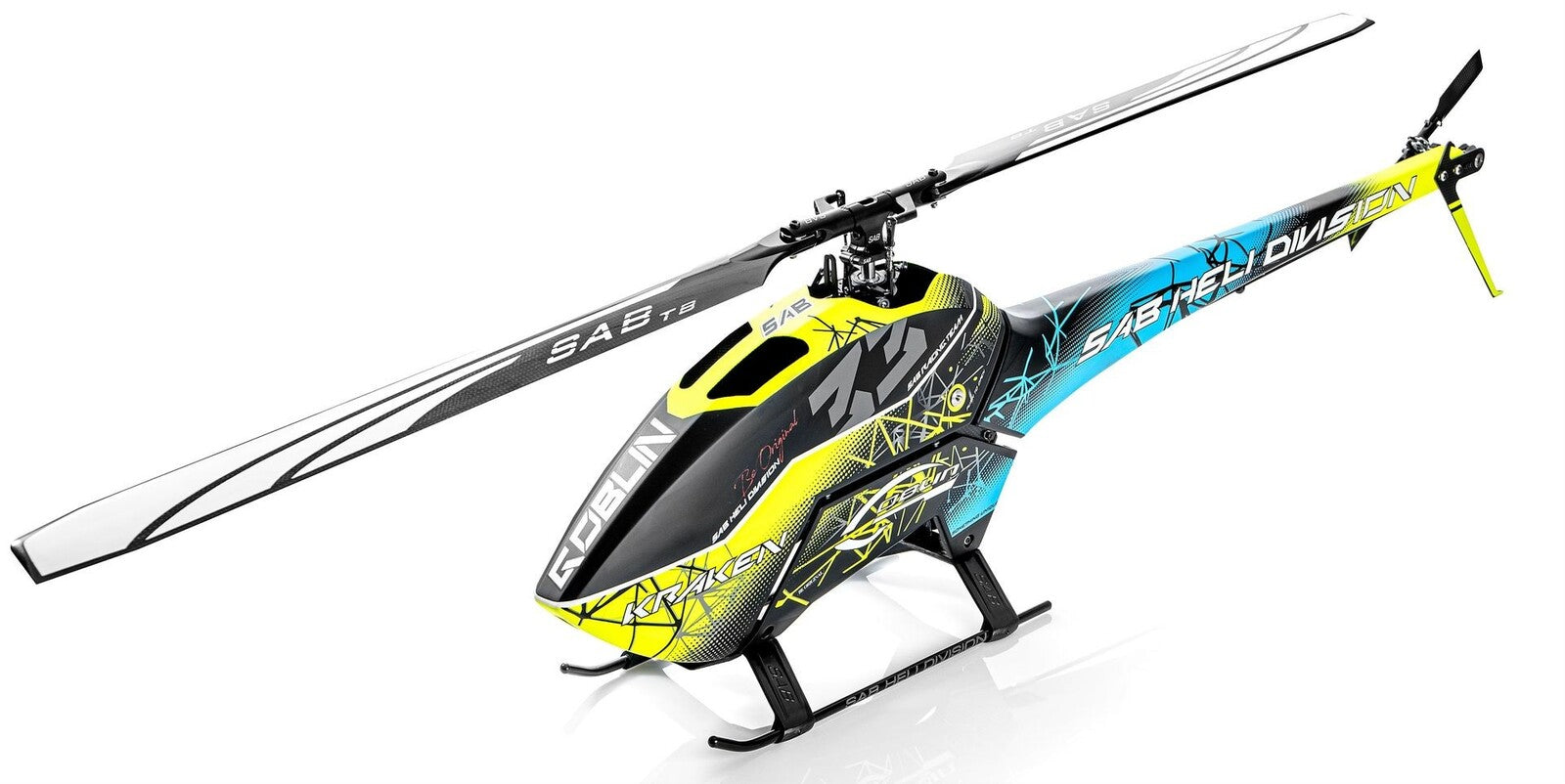

SAB GOBLIN KRAKEN 580

The new Kraken 580 use the same concepts from the Kraken 700.The new Kraken 580 use the same concepts from the Kraken 700.

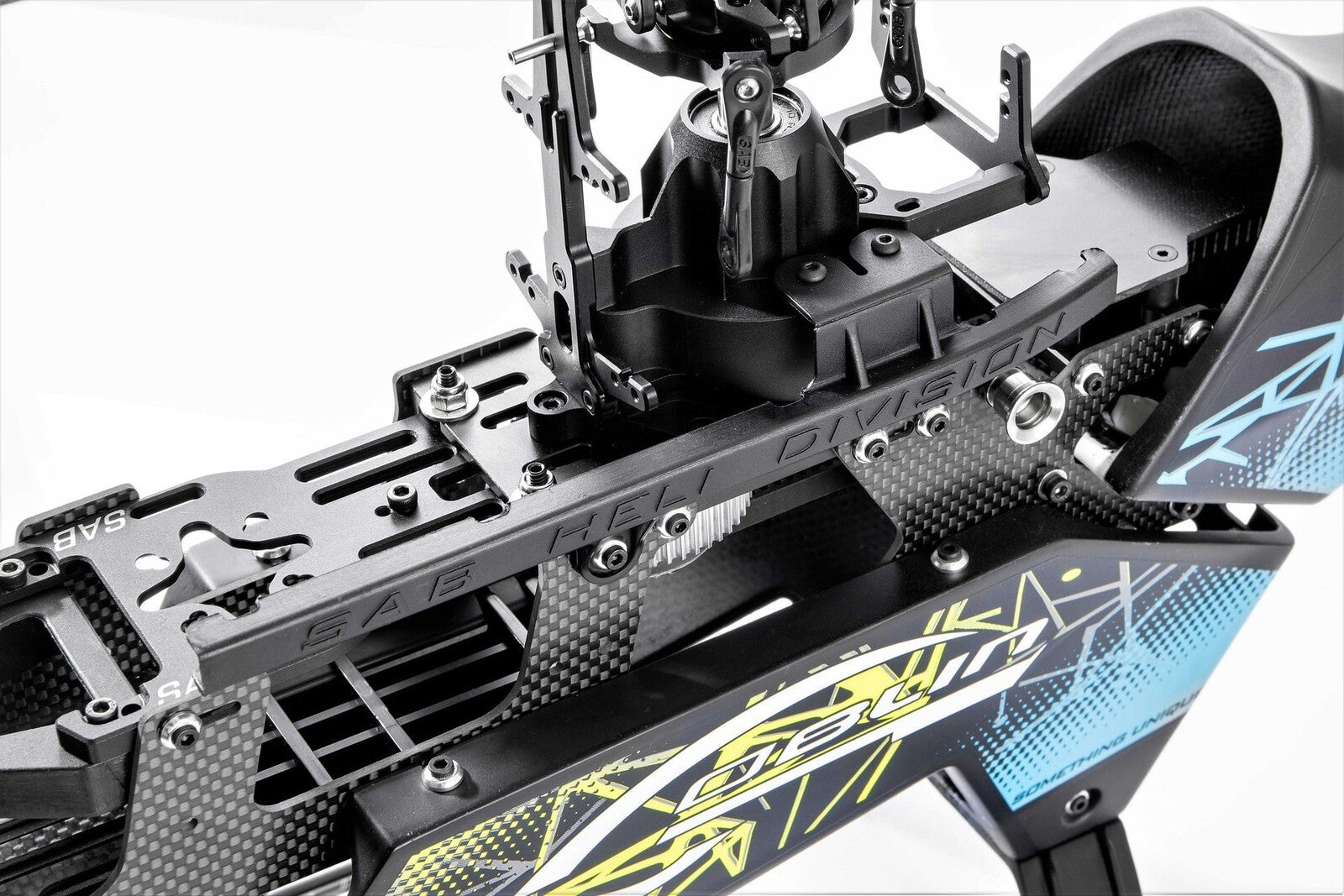

• Incredible strong Power train enclosed in aluminum case

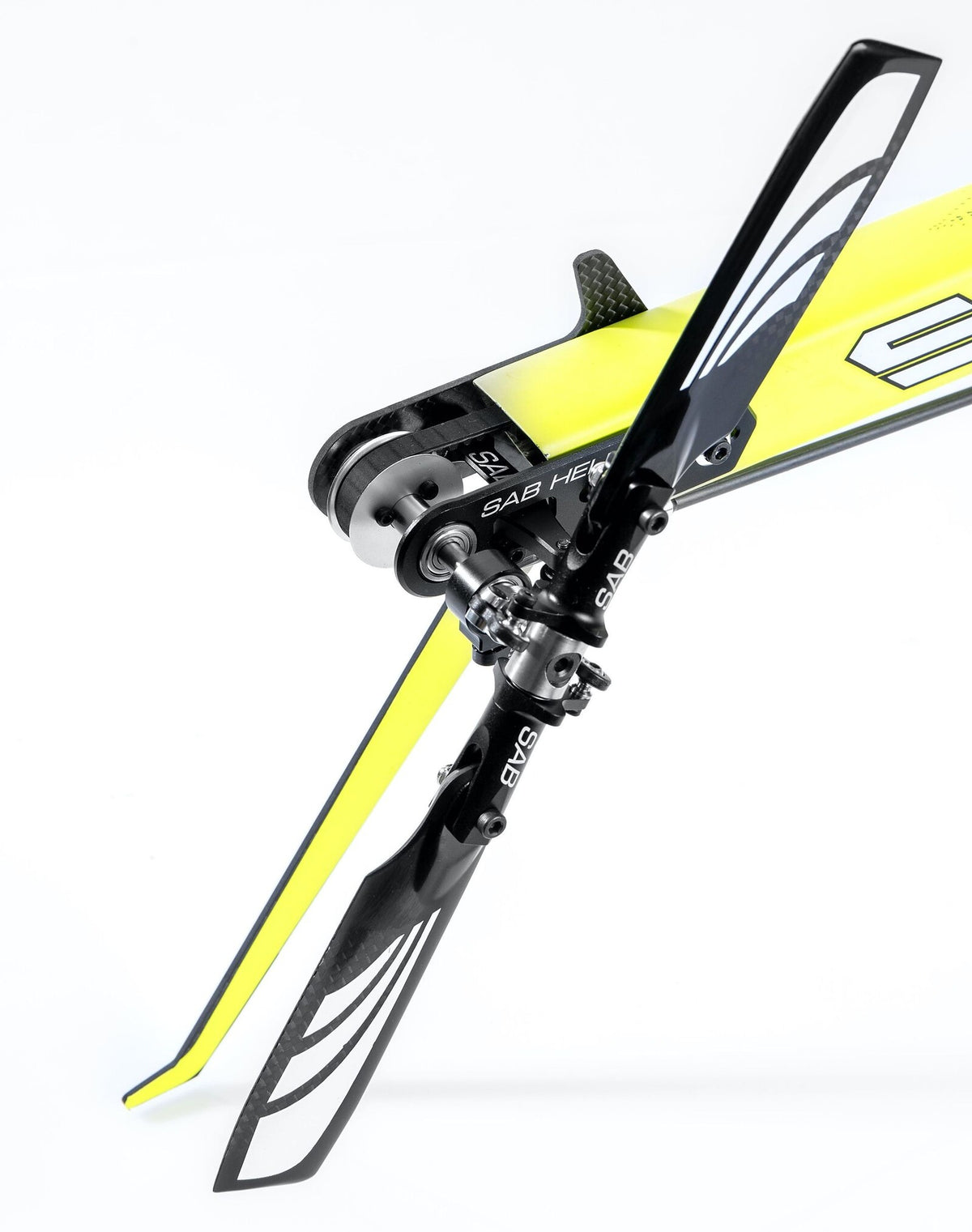

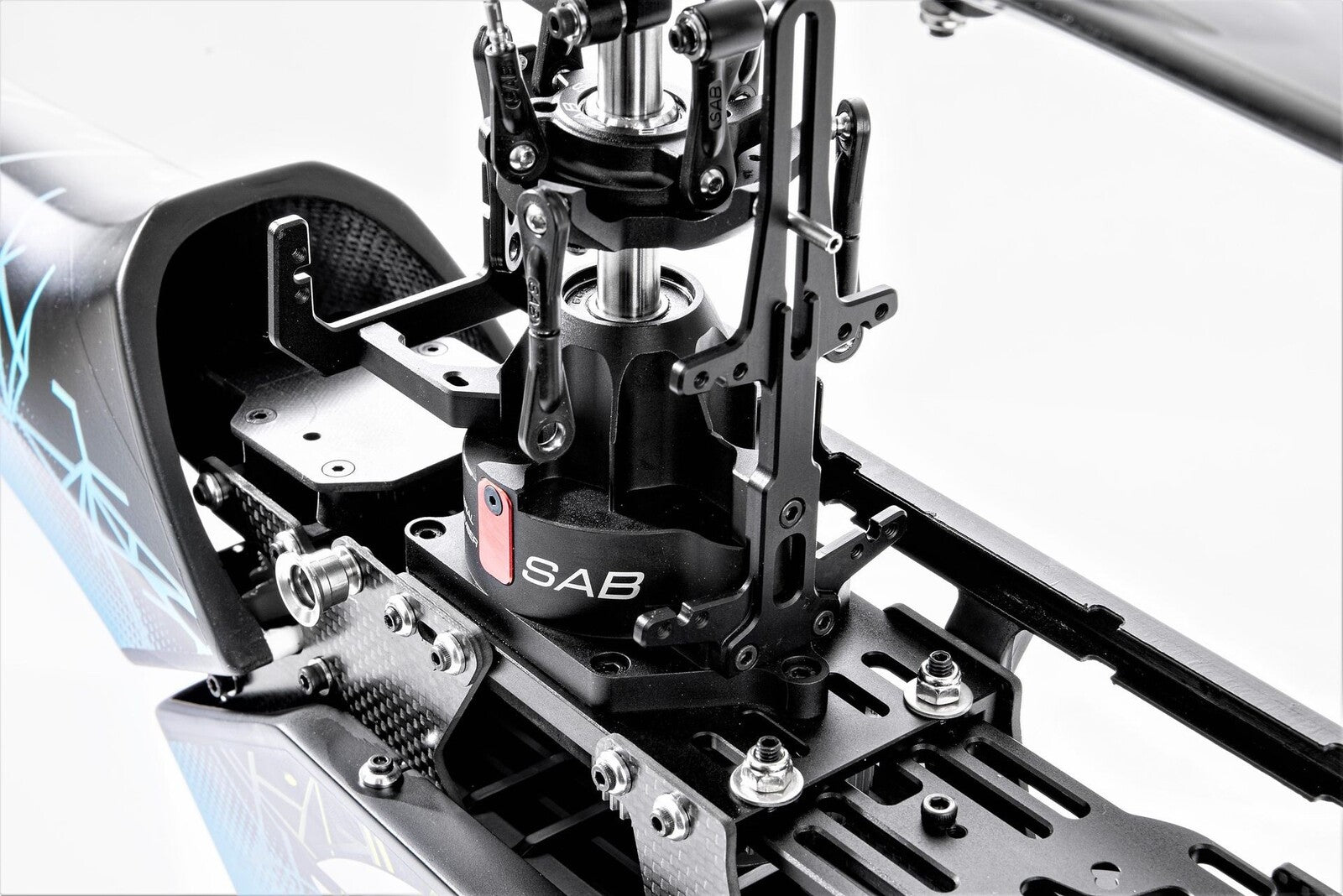

• Ultra light 7075 aluminum alloy highly adjustable rotor head with super simple Tail group
• Body and boom design with integrated frames, to create a amazing fuselage style
• Boom detachment system for improved crash durability
• Main blades up to 600mm.

TECHNICAL SPECITICATIONS

• AIRFRAME weight: 1760gr ( with blades, no battery, no electronics )
• Main blade length: 550mm to 600mm
• Tail blade length: 95 to 105 mm
• Main rotor diameter: 1270 mm (with 570 mm blades included)
• Tail rotor diameter: 260 mm (with 95 mm tail blades included)
• Cyclic Servos: mini cyclic servo (torque over 8 Kg-cm). Kit includes servo mounts for mini-servos. Full size servo mounts available separately.
• Tail Servo: standard size 40mm.
• Main Rotor ratio : 11.5 to 8.6 :1 ( 22T included: 9.4:1)
• Tail Rotor ratio : 5.3-4.9:1 ( 23T included: 4.9:1 )
• Typical motor : 4025 series, 6S 1000-1200 Kv, 12S 500-600 Kv. Minimum motor shaft length is 26mm (We recommend using a 6mm diameter motor shaft)
• Typical speed controller: 6S 120-140 A, 12S 100-130A
• Battery size: 6S 5000/5800 mAh, 12S 2600/3200 mAh.

Configuration	580/600
Available P/N	SG580
Main rotor diameter	1270 mm (with 570 mm blades included)
Main blade length	550mm to 600mm
Tail rotor diameter	260 mm (with 95 mm tail blades included)
Tail blade length	95 to 105 mm
Main shaft diameter	10 mm
Tail shaft diameter	5 mm
Weight	1760gr ( with blades, no battery, no electronics )

Helicopters Secondary Data

Cyclic Servos	Mini size 36 mm
Tail Servo	Standard size 40 mm
Typical speed controller	6S 120A, 12S 130A
Maximum motor size	52 mm diameter x 58 mm height
Motor KV	6S 1000-1400KV, 12s 500-700KV
Battery compartment	6S 50x60x200 mm, 12S 50x45x280 mm
Battery capacity	6S 5000/5500 mAh, 12S 2600/3300 mAh
Available ratios	From 8.5 to 12.9
