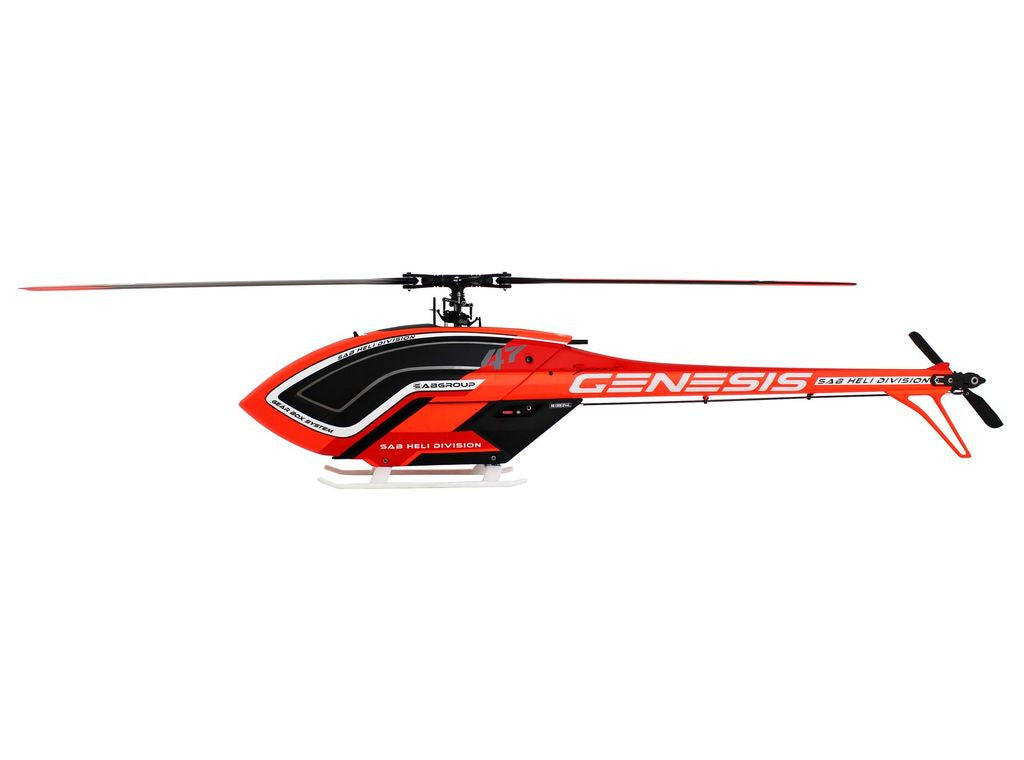

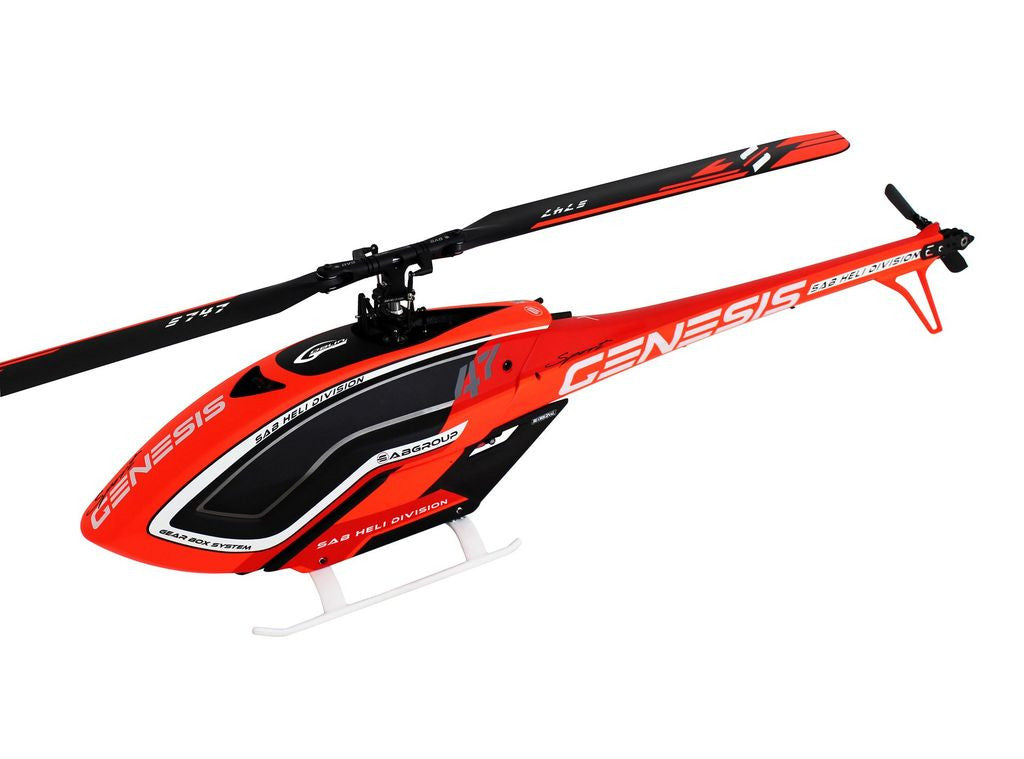

Goblin Genesis Sport Orange

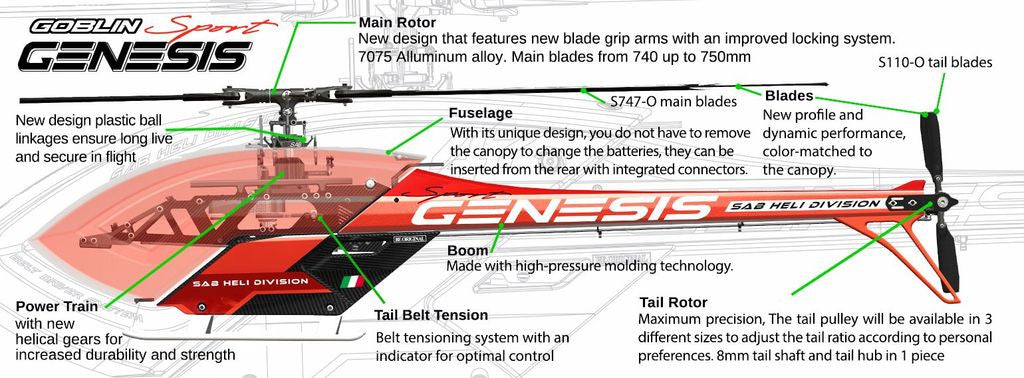

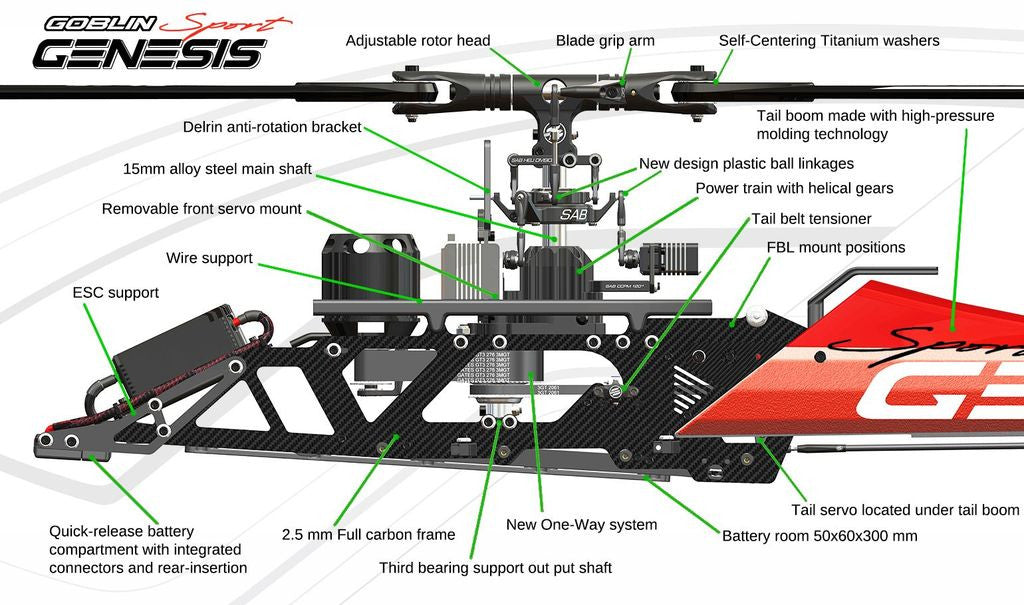

The new Genesis is completely redesigned, offering several advanced features:

Transmission:

• Belt Drive: Ensures a very quiet and smooth transmission.
• One-Way Bearing: positioned directly on the main shaft for maximum smoothness during autorotation.
• 15 mm Main Shaft: Supported by two bearings assembled in a separate unit for ease of maintenance.

Rotor Head:

• New Design: Features 35 mm blade grip arms with a new locking system.
• Self-Centering Titanium Washers: Ensure automatic centering for greater precision.
• Pivot Option for Spindle: Fully configurable for rigidity and maximum movement.

Tail Rotor:

• 8 mm Tail Shaft with 8x16x5 bearings for significantly increased rigidity.
• Single-Piece Shaft and Hub: Made from a single piece for maximum precision.
• Double-Point Pitch Control Slider: Reduces play in the tail rotor control.

Tail Boom:

• Molded Carbon Fiber: Tail boom is molded carbon fiber and assembled directly to the main frame.\
• Belt Tensioning System: Includes an indicator for tension force for optimal control.

Canopy and blades:

• Rear Battery Insertion: Batteries are inserted from the rear with integrated connectors.
• No Canopy Removal Needed: Canopy does not need to be removed for battery changes.
• The kit includes new S747-O main blades and the new S110-O tail blades.

The Genesis Sport offers advanced features that make it an excellent choice for both competition and demanding RC helicopter enthusiasts.

Specifications:

• AIRFRAME weight: 2584 gr (no blades, no battery, no electronics).
• Main rotor diameter: 1650 mm (with 747 mm blades).
• Main blade length: 690 to 760 mm.
• Tail rotor diameter: 292 mm (with 110 mm tail blades).
• Tail blade length: 105 to 115 mm.
• Cyclic Servos: Standard size 40 mm.
• Tail Servo: Standard size 40 mm.
• Main Rotor Ratio: 8,73 to 7,2 (21T included: 7,9:1).
• Tail Rotor Ratio: 4,24:1
• Main shaft 15 mm, Tail shaft 8 mm
• Molded carbon tail boom
• Motor 12S, 360/420 KV
• Battery room: 50x60x30 mm

KIT Includes:

• 21T motor pulley (other pulley sizes available).
• 2 battery trays with integrated connectors.
• S747 Orange (747 mm main blades)
• S110 Orange (110 mm tail blades)
