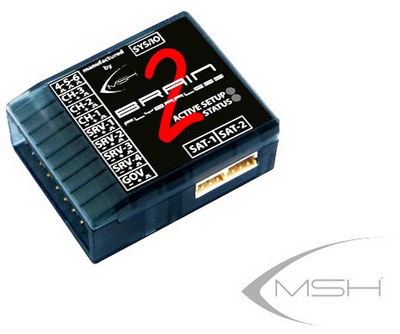

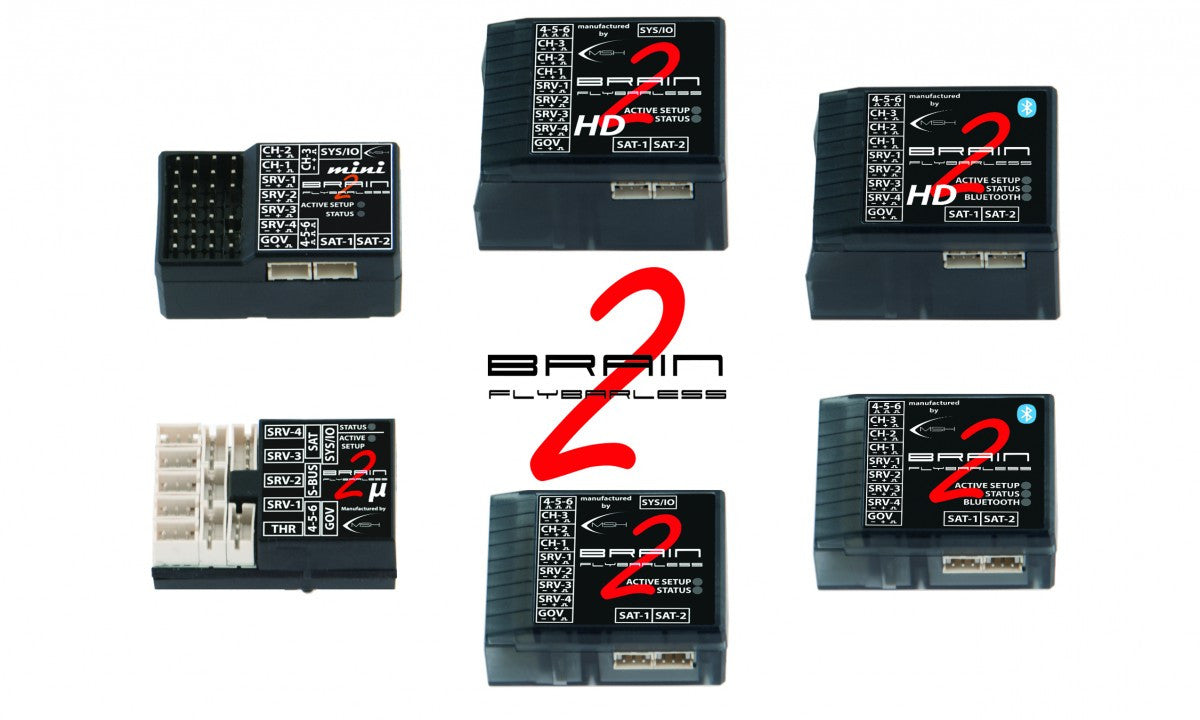

MSH BRAIN 2 Flybarless Controller

13 Connections:

9 Gold-plated servo type three pole JR/Futaba male connectors, with 11 signals connections (7 input and/or 7 output) and 8 servo power bus connections 1 SYS four poles JST connector (GND, TX, RX, +V) capable to power internally the unit or an external accessory (Wireless Dongle) 1 On board micro USB connector capable to power internally the Unit 2 SAT three pole JST connectors with 3,3V output (2 input and/or 2 output)

Serial input for every receiver Brand with very low latency method:

Spektrum:  New bidirectional SRXL v2 (with telemetry) / Bidirectional SRXL (with telemetry) / Unidirectional SRXL / DSM2 22mS / DSM2 11mS / DSMX 11mS / PPM / Remote RX

Futaba:       S.Bus2 (with telemetry) / S.Bus / PPM

Jeti:              EX-BUS (with telemetry) / UDI / PPM+ / PPM-

Graupner:  SUMD (with telemetry) / SUMO

Multiplex:   SRXL + MSB (with telemetry)

FrSky:          S.Bus + Smart.Port (with telemetry) / F.Port (with telemetry) / F.Port2 (with telemetry) / F.Bus (with telmetry) / S.Bus

JR:                X-Bus B

Hitec:          S.Bus

RadioLink: S.Bus

TBS:             Crossfire (with telemetry) / S.Bus / PPM

ELRS:           Crossfire (with telemetry)

FlySky:       i-Bus

Governor:

For Electric, Nitro, Gasser

Autorotation Bailout function (fast RPM recovery from a failed autorotation manoeuvre)

Telemetry input:

From ESC on electric models:

Castle Creation

Hobbywing

Align

Scorpion

Kontronik

YGE

Spektrum

FrSky

From Temperature sensors on Nitro / Gasser / Turbine models:

Jeti

Futaba

From RPM Sensors:

All sensor brand

Possibility to monitor separately also the RPM of the tail motor

From Variometer (Altitude, Vertical Speed):

Jeti on SAT2 connector

FrSky, Futaba, Robbe, Graupner sensors on Bus

Quality Of Signal (QOS) received:

For all receivers brand

Quality of Servo Voltage input:

For all kind of Power input: ESC BEC, external/separate BEC, 2S Lipos/Li-Ion/Li-Fe/NiCd/NiMh, Backup Power Systems

Telemetry output:

Spektrum, Futaba, Jeti, Graupner, Multiplex, OpenTX, EdgeTX, Ethos, TBS, ELRS, FlySky

Power input:

Between 4,5V to 15V with one or two (redundant) lines from BEC or 2S Li-Po (7.4V) or 2S Li-Ion (7.4V) or 2S Li-Fe (6.6V) or 5/6/7 NiCd -NiMh

Outputs:

6 full programmable servo outputs / ESC outputs. From 50 to 560Hz

Auto Diagnosis at each power on:

With result by LED flashes

With result by initial Swashplate movements

With result in Events logs

Diagnostic logs:

More than 50 different parameters can be recorded during flights

Vibrations are also logged during flights

More than 50 different types of Events are monitored and automatically logged during flights

Already included “on board”:

        Status LED

USB on board

Parameters setup / regulation:

Via apps in English, Deutsch, Francois, Russian, Chinese, Italian, Spanish (with the possibility to add, edit, share other languages):

Windows

MAC (with emulators)

Android

iOS

Via “Integrations” menu:

Spektrum

Jeti

Graupner

OpenTX

EdgeTX

Ethos

Via dedicated transmitters channels (dials):

In addition to the radio channel dedicated to tail gain, up to three other radio channels can be assigned to one of the 48 internal parameters of the unit

Swashplates:

90°

120°

135°

140°

4 servos

Tandem rotors

Included in the package:

1x Brain2

1x Servo cable for serial RX connection

2x Double-sided adhesive

1x ‘Safety Notes’ leaflet
